Product

Model T100 UV Fluorescent SO2 analyzer

Uses the proven UV fluorescence principle, coupled with state of the art microprocessor technology to provide accurate and dependable measurements of low level SO2. Exceptional stability is achieved with the use of an optical shutter to compensate for PMT drift and a reference detector to correct for changes in UV lamp intensity. A hydrocarbon "kicker" and advanced optical design comb ...

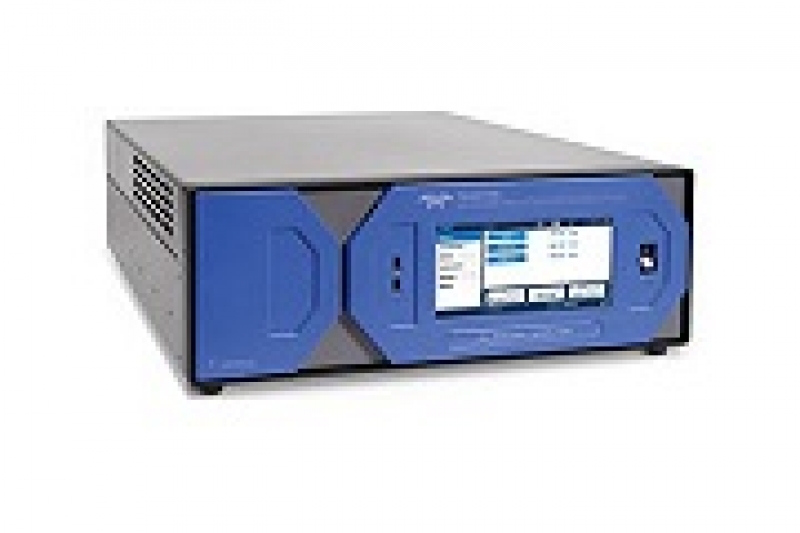

Model T200 Chemiluminescent NO/NO2/NOX analyzer

Uses the proven chemiluminescence detection principle, coupled with state-of-the-art electronics to allow accurate and dependable low level measurements for use as an ambient analyzer or dilution CEMS monitor.  The analyzer includes a permeation inlet dryer for ozone generation to provide excellent reliability with no periodic replacement required. A catalytic exhaust ozone scrubber is sta ...

Model T300 Gas Filter Correlation CO analyzer

Measures low ranges of carbon monoxide by comparing infrared energy absorbed by a sample to that absorbed by a reference gas according to the Beer-Lambert law. This is accomplished with a Gas Filter wheel which alternately allows a high energy light source to pass through a CO filled chamber and a chamber with no CO present. The light path then travels through the sample cell, which has a folded p ...

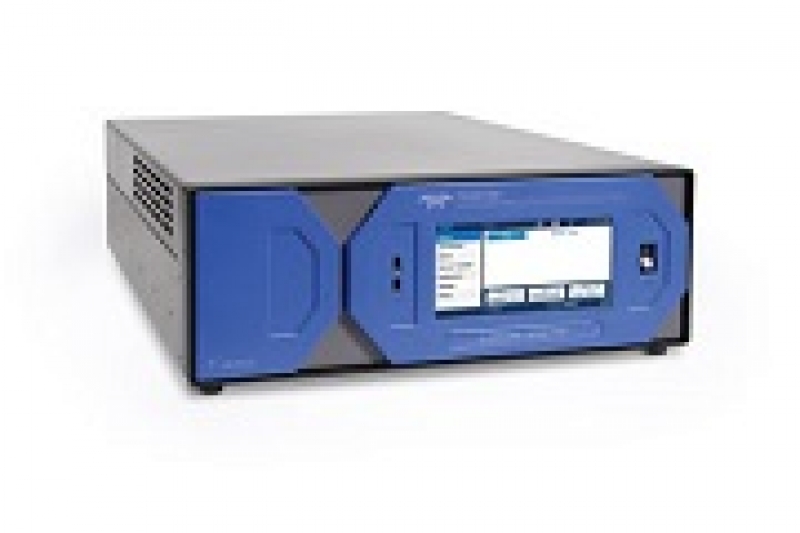

Model T400 UV absorption O3 analyzer(EPA Equivalency)

UV Absorption Ozone Analyzer is a microprocessor-controlled analyzer that uses a system based on the Beer-Lambert law for measuring low ranges of ozone in ambient air. A 254 nm UV light signal is passed through the sample cell where it is absorbed in proportion to the amount of ozone present. Every three seconds, a switching valve alternates measurement between the sample stream and a sample th ...

Model T700 Mass Flow Calibrator

A microprocessor based calibrator for precision gas analyzers. Using a combination of highly accurate mass flow controllers and compressed sources of standard gases, calibration standards are provided for multipoint span and zero checks. Up to 4 gas sources may be used. In addition, the Calibrator can be equipped with an optional built-in, programmable ozone generator for accurate, dependable o ...

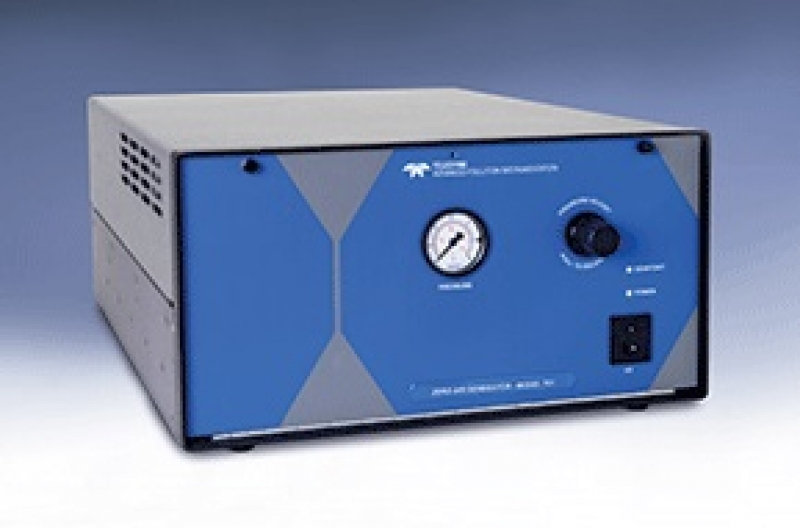

Model 701 Zero Air Generator

An excellent source of clean, dry air for dilution calibrators. It also may be used as a source of purge air for permeation tube ovens or burner air for FID analyzers. The regenerative, heatless dryer removes water and produces a gas with a dewpoint of less than -20°C, independent of inlet dewpoint. The regenerative dryer also assists in the removal of other gases, greatly increasing the life ...
